Redispatch / Reclear Demonstration



Introduction

Redispatch / Reclear Demonstration

This simulation will be comprised of a step-by-step walkthrough of the Reclear functionality, including a detailed review of how the functionality can be employed during a practical flight plan.

We estimate that this will take 3 minutes to complete.

Detailed Explanation

Redispatch / Reclear Demonstration

This training module demonstrates the Reclear functionality and how it can be employed on a flight.

Interaction 1 Click the Info dropdown button.

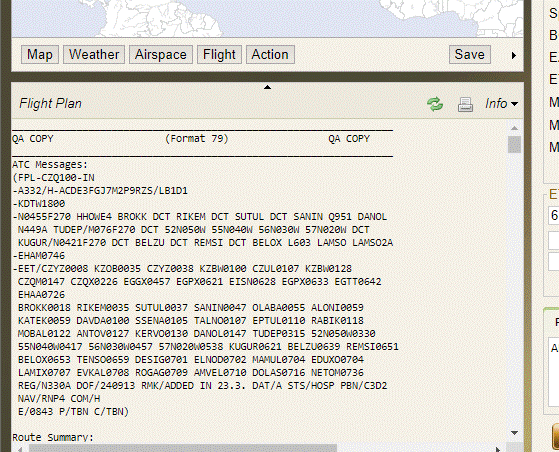

To highlight the benefits of Reclear functionality, this module will start with an existing flight plan computation.

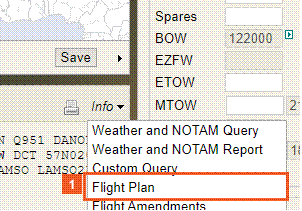

Interaction 1 Click the Flight Plan list item.

Interaction 1 Click Flight Plan Info area.

Interaction 1 Click Destination input field in the Reclear box.

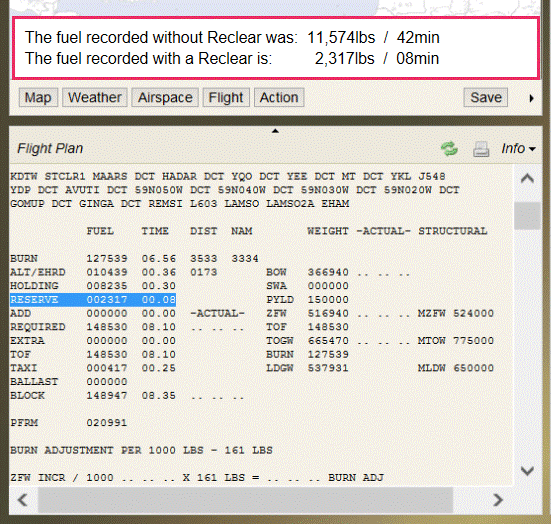

Reclear functionality reduces the required fuel reserves, note the reserve fuel without Reclear.  11,574lbs  /  42min

Interaction 1 Enter EGAA into the Destination field.

Interaction 1 Click the Alternate dropdown button.

Interaction 1 Click the EIDW list item.

The system will automatically suggest an alternate for the Reclear Destination, based on the system settings and configurations.



The end user can override the automatic selection.

HINT

Not all reclear attempts are beneficial. A good reclear depends on the availability and suitability of stations used for reclear destination and alternate.



Note that Reclear may need a format change before it appears on the flight plan.

Interaction 1 Click the Waypoint dropdown button.

Interaction 1 Click the GINGA list item.

The system will automatically suggest a waypoint for the Reclear calculation.



The system will calculate the reserve fuel based on the route from the Reclear waypoint to the intended Destination.

 The end user can override the automatic selection.

Interaction 1 Click the Compute button.

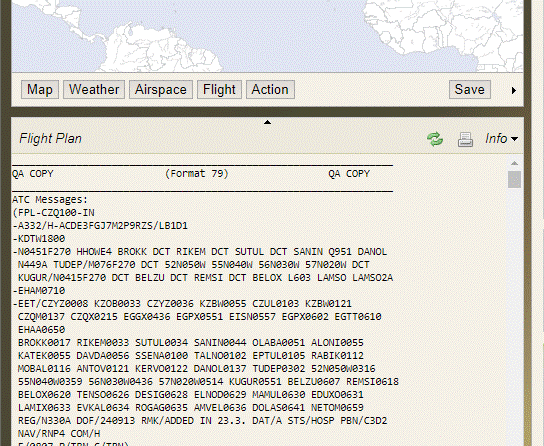

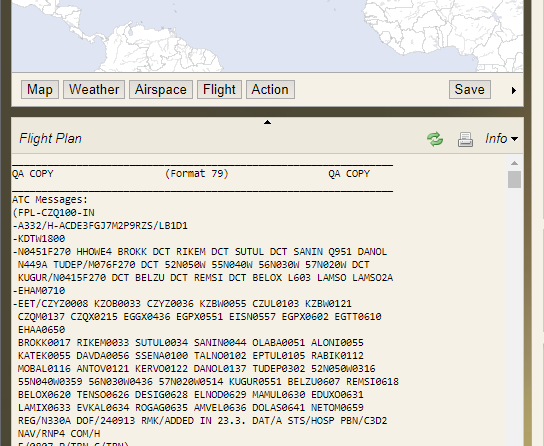

Interaction 1 Click Flight Plan Info area.
