Reclear Group

Introduction

Reclear Group

This topic covers the Reclear group on the Plan Screen. You will learn how each option in the group is used by the N-FP system. You will also see a demonstration of the Reclear/Redispatch functionality.

We estimate that this will take 4 minutes to complete.

Detailed Explanation

Plan Screen - Reclear Group

The Reclear Group contains the fields required for planning a "Reclear", "Refile", or "Redispatch" Flight Plan.


A screenshot of a computer

AI-generated content may be incorrect.

Interaction 1 Click the Destination input field.

The reclear section is inactive, and mostly disabled, until a reclear destination is entered.

Interaction 2 Enter EINN into the Destination field.


A screenshot of a computer

AI-generated content may be incorrect.

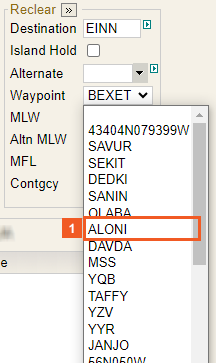

Interaction 1 Click the Waypoint dropdown button.


Once a destination is entered, the system will automatically suggest a reclear alternate.



The system will also review the route of flight, and suggest a reclear waypoint based on the reclear destination.



Both of these suggested fields can be changed by the Dispatcher.


A screenshot of a computer

AI-generated content may be incorrect.

Interaction 1 Click the ALONI list item.


A screenshot of a computer

AI-generated content may be incorrect.

Interaction 1 Click the Alternate green arrow button.


A screenshot of a computer

AI-generated content may be incorrect.

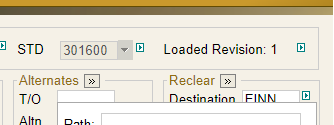

When the green information context arrows by the reclear destination or the reclear alternate are selected, a dialog box opens. This allows a user to manually enter a reclear route path.



Routes in the standard route string format, as used in the N-FP Route Screen, will be accepted.


A screenshot of a computer

AI-generated content may be incorrect.

Interaction 1 Click the Reclear >> button.

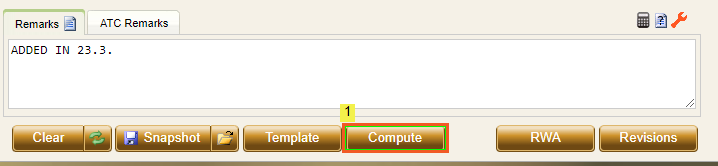

Interaction 1 Click the Compute button.


Additional fields include:

Island Hold Checkbox

  • Enabling Island Hold will add enough fuel for the aircraft to hold for two hours at top of descent flight level since no alternate airports are available.

MLW: Maximum Landing Weight

  • This field allows you to enter the maximum land­ing weight of the aircraft for the reclear. By default the maximum structural landing weight from the Aircraft Characteristics Program is displayed.

Altn MLW: Alternate Maximum Landing Weight

  • This field allows you to enter the maximum landing weight for the aircraft for the reclear alternate.

MFL: Maximum Flight Level

  • This field allows you to enter the maximum flight level for the reclear flight.

Contgcy: Reclear Contingency Fuel

  • This field allows you to specify an amount of contingency fuel to add for the sake of reclear.

Altn IFR: IFR Time/Fuel

  • Enter the IFR fuel in minutes for airport approach. This field is populated from the Alternates menu.
  • Enter the IFR fuel amount for airport approach. This field is populated from the Alternates menu.
  • If both are set to 0 (default) there is no impact on the Flight Plan calculation.

Interaction 2 Click the Plan button.


The Reports screen will automatically open to allow you to preview the Flight Plan.


A screenshot of a computer screen

AI-generated content may be incorrect.

Interaction 1 Click the Map zoom button.


After the flight is computed with a reclear, the reclear route and reclear airports are able to be displayed on the Map.


A screenshot of a computer

AI-generated content may be incorrect.

Interaction 1 Click the Flight button.


A screenshot of a map

AI-generated content may be incorrect.

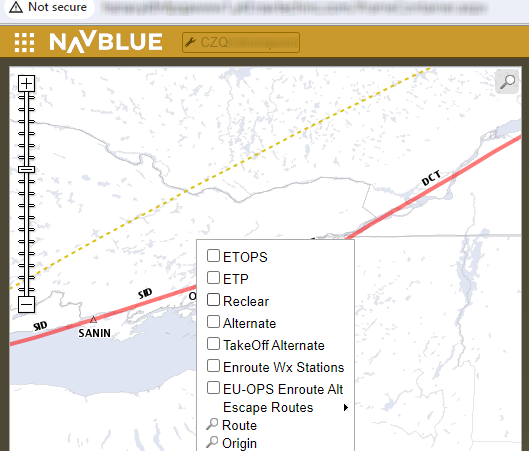

Interaction 1 Click the Reclear check box.


A map with a red line

AI-generated content may be incorrect.

Interaction 1 Click the anywhere on the map image.


After the map layer is selected, click back on the map to close the menu and apply the layer.


A screenshot of a map

AI-generated content may be incorrect.

Interaction 1 Click the Map zoom button.

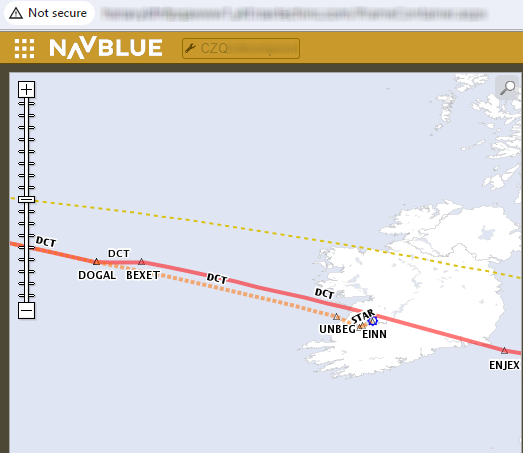

Zoom in to see the route more completely.


A map of the united kingdom

AI-generated content may be incorrect.
