Introduction

ATC Remarks

In this topic, we will provide an overview of the ATC remarks, and how the ATC Strip can be edited prior to sending.

We estimate that this will take 2 minutes to complete.

Detailed Explanation

Updating the ATC Message

There are two ways to update the ATCs:

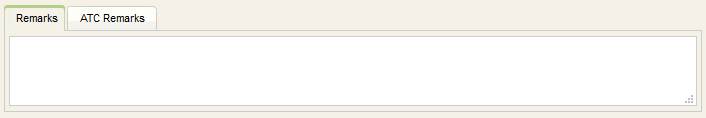

1. From the Plan screen, there is a tab for ATC Remarks:

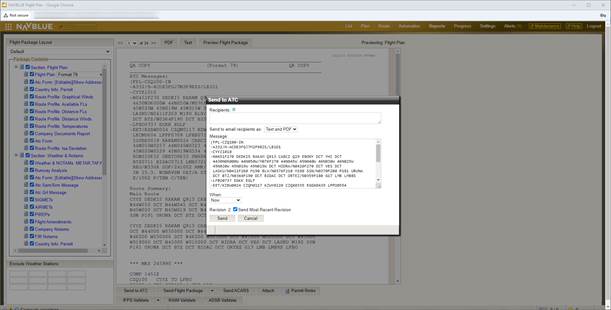

 2. From the Reports screen, you can edit the ATC message before you send to ARTCC:

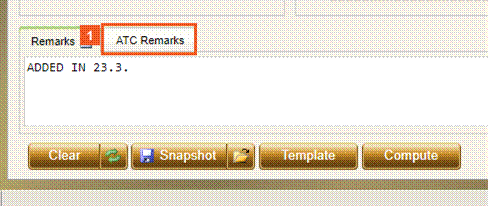

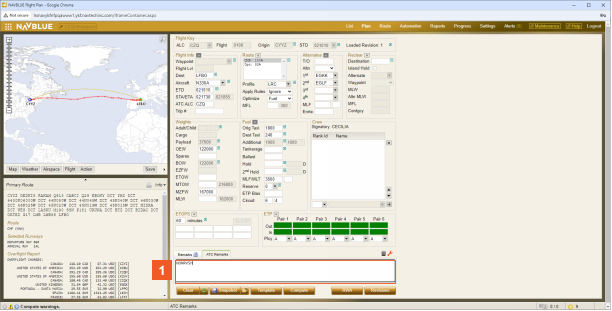

Click the ATC Remarks tab.

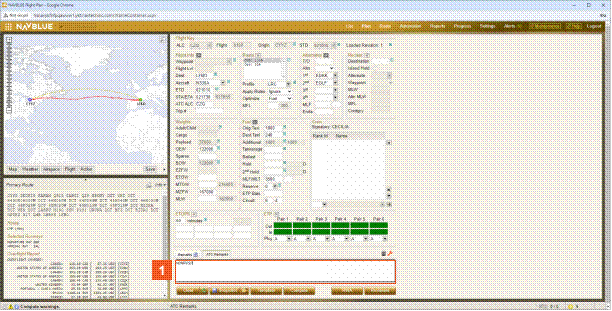

You can add ATC Remarks from the Plan screen using the text box at the bottom.

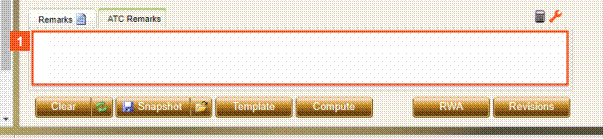

Click the Blank ATC Remarks input field.

The tab that is active will have a green line above it.

Enter NONRVSM into the Blank ATC Remark field.

In this example, we will indicate our aircraft is now NONRVSM for this flight. This remark will show in Line 18 on ATC message.

REMINDER

Note: STS/NONRVSM code for the Flight Plan can also be added in the Aircraft Characteristics or FOMS 220 menu.

Click the Compute button.

Once you have finished your flight plan, you may select Compute.

Click the Send to ATC button.

Once the flight is computed, you may send to ATC. However, we need to make an adjustment to our flight strip before we send it out.

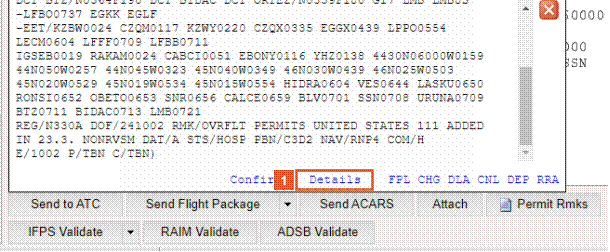

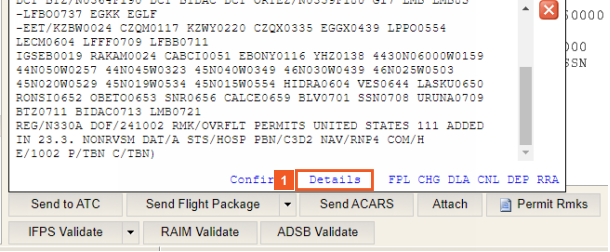

Click the Details hyperlink.

Clicking Details will bring up a text box with the ATC message you can edit before sending.

HINT

If you do not need to make changes or put the message in a queue, you can select Confirm, which will send the message to ATC as shown in the box below.

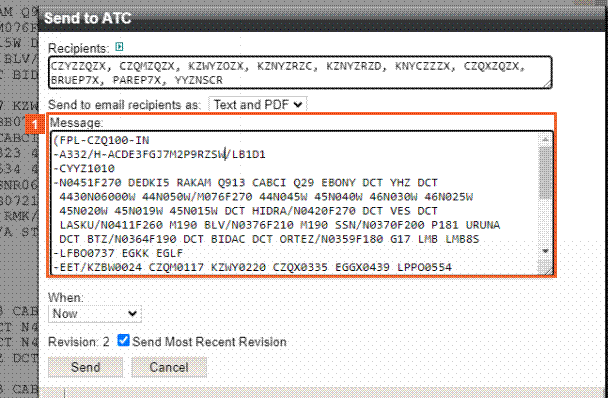

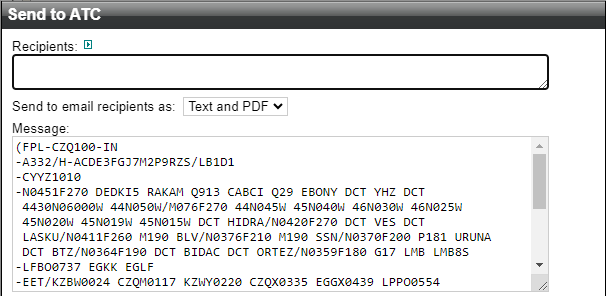

Click the Message input field.

From here you can edit the recipients, type of file, message, and when the message should be sent.

Press the key.

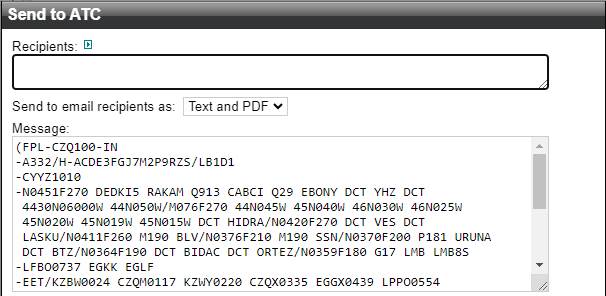

In this example, we need to remove the equipment code "W" to signify we are non RVSM.

You can also edit the altitude, remarks, or any other section of the message before sending out.

 This is helpful for changes that are not permanent or received after a flight has been computed.

SUCCESS

Congratulations! You have successfully added a ATC Remark.
