Introduction
Flight list columns
This topic provides you with an overview of the columns in the flight list.
We estimate that this will take 3 minutes to complete.
Detailed Explanation

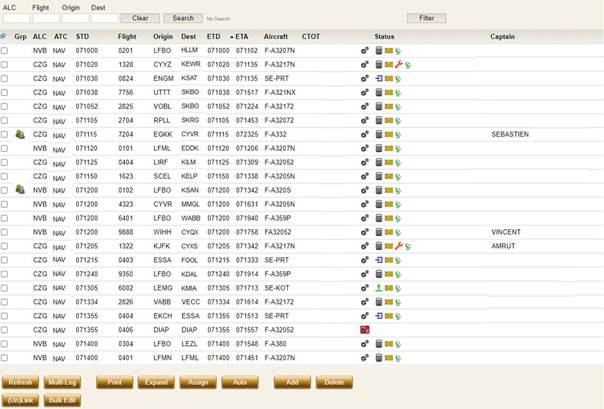

List columns
Flight Selection Column
Each flight has a checkbox associated with it to allow the selection of flights. The context button at the top of the column opens a menu listing three options: Select All, Unselect All, and Select Un-Assigned.
Clicking on:
- Select All will select all the flights in the list (filtered-out flights will not be selected).
- Unselect All will unselect all the flights in the list.
- Select Un-Assigned will select all the flights in the list that are not assigned to a group (filtered-out flights will not be selected).
The current flight selection will be cleared if the Refresh button is clicked.
List columns - Group columns
Group Column
The Group column allows users to easily identify whether a flight is assigned to them.
This icon indicates that the flight is assigned to a group the user is a member of.
This icon indicates that the flight is assigned to other groups.Flights not assigned to any groups will have a blank value for this column.
Hovering over a group icon will display a tool tip identifying which groups, in alphabetical order, the flight is assigned to.
List columns - Remaining columns
Remaining Columns
ALC - This field displays the airline code.
ATC ALC - This field displays the ATC ALC.
STD - This field displays the scheduled time of departure in the DDHHMM format.
Flight # - This field displays the flight number.
Origin - This field displays the ICAO code of the origin airport.
Dest - This field displays the ICAO code of the destination airport.
ETD - This field displays the estimated time of departure. Note: The time displays in blue text if an Actual Out time has been received.
ETA - This field displays the estimated time of arrival. Note: The time displays in blue text if an Actual In time has been received.
Aircraft - This field displays the Registration of the aircraft.
CTOT - This field displays the Calculated Take Off Time. Note: This field is not automatically active. Please contact NAVBLUE Support for assistance in setting up this field.
Captain - This field displays the name of the Captain.
Status - This field displays the status of the flight. A flight may have more than one status applied. The following list is of all the available status types:
Cancelled
Computed
Pending Input
Diverted
Out
Off
On
In
Sent ATC
ATC transmission pending
Sent and Acknowledged ATC
Sent and Rejected ATC
Sent Pkg
Status Icons - continued
Status continued - This field displays the status of the flight. A flight may have more than one status applied. The following list is of all the available status types:
Pkg transmission pending
The flight has at least one unread alert.
All the alerts for the flight have been read.
There are missing permits for the flight.
There is an automation exception
The flight is currently automated
Flight Amendment
Sent ACARS
ACARS transmission pending
Flight has reclear
A High Min Captain has been assigned to a computed flight.
Tankering Advised - tankerage is advised when the calculated fuel savings meets the given threshold - see Advise Tankering.
Tankering Required - tankerage is required if Available is set to <N> in Fuel Costs webFOMS
RAIM check failed
RAIM check passed
Indicates that the aircraft assigned to the flight has a MEL/CDL assigned to it with a penalty/effect type applied.
Indicates that the aircraft assigned to the flight has a MEL/CDL assigned to it without a penalty/effect type applied.
Indicates that the Take Off and Landing Report has been sent.
Indicates that the Take Off and Landing Report has been received but not sent.
ATTENTION
Clicking on the Automation icon or the Automation exception icon will update the Info Panel to display the Automation Event log.
