1 Introduction
Reserve/Contingency Policy Selection
This topic will review the practical application of the reserve policies, as well as a review of how those policies can be set on the back end, including the use of Input Defaults.
We estimate that this will take 3 minutes to complete.
2 Detailed Explanation
N-Flight Planning Reserve/Contingency Policy Selection

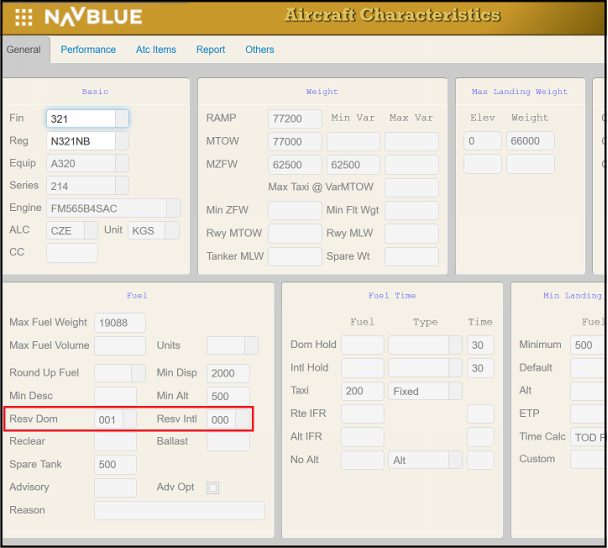

This module will review the practical application of the various Reserve Policies available via the N-FP interface. Note that the default values for Reserve Fuel can be set in the Airline Code Parameters and/or Aircraft Characteristics.
Click
the Reserve dropdown
button.
The Reserve
selection is an option within the Fuel Group on the Plan Screen. The Reserve
selection allows you to specify either a "policy", a fixed
amount of fuel as a weight, a fixed amount of fuel as a time in
minutes, or a percentage of the total flight time.
NAVBLUE has an
extensive catalog of existing Reserve Policies. The
system can support up to 100 Reserve Policies in the Reserve
drop down. If a customer requires a policy that does
not currently exist, it can be created.
Click
the 8 list
item.
The description of the Reserve Policy can be found below.
The drop down list shows policy options 0 - 100.
Click
the green arrow next to Reserve button.
Once a new policy is selected, the description displays below.

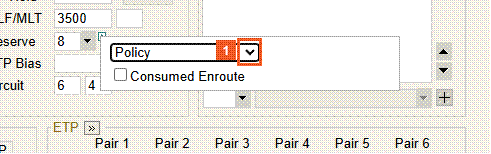

Click
the Policy dropdown
button.
The "Consumed Enroute" box will allow the system to burn the reserve fuel along the route of flight.
There is a similar trigger in Airline Code Parameters to allow the system to burn reserve fuel by default.

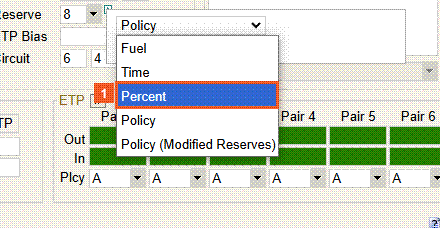

Click
the Percent list
item.
In addition to specific policies, the system will allow you to select a specific fixed fuel weight, time, or percentage.
Modified Reserves will be discussed in a separate module.

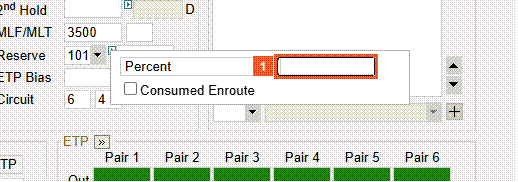

Click
the Percent input
field.
If a fixed weight, time, or percentage is selected, the value can be entered in this field.
Enter 5 into
the Percent field.
The value will be displayed here on the Plan Screen.
