Aircraft Configuration - ETP/Driftdown Fuel Dumping


Introduction

Aircraft Configuration - ETP/Driftdown Fuel Dumping

Description of Fuel Dumping Aircraft Configuration

We estimate that this will take 2 minutes to complete.

Detailed Explanation

ETP Fuel Dump Configuration

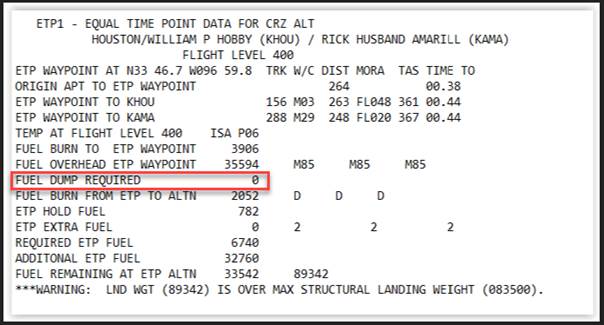

Fuel dumping is used in ETP engine failure situations. If due to an engine failure, an aircraft type is unable to maintain a safe altitude that meets drift down requirements, N-FP will calculate the necessary amount of fuel to be dumped in order to maintain a safe altitude (MORA). A field can be added to the flight plan fuel block that provides the amount of fuel to be dumped in an ETP engine out scenario.

 The following steps will show how to enable fuel dumping for a particular aircraft type.

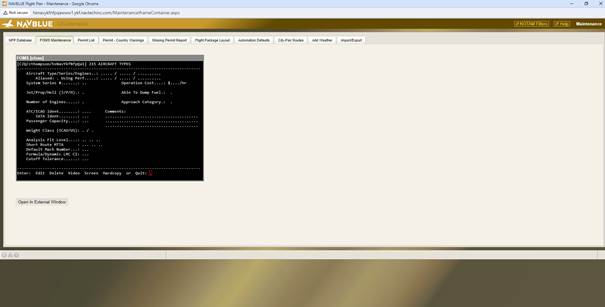

Interaction 1 Click the Maintenance menu item.

Interaction 1 Click the FOMS Maintenance tab.

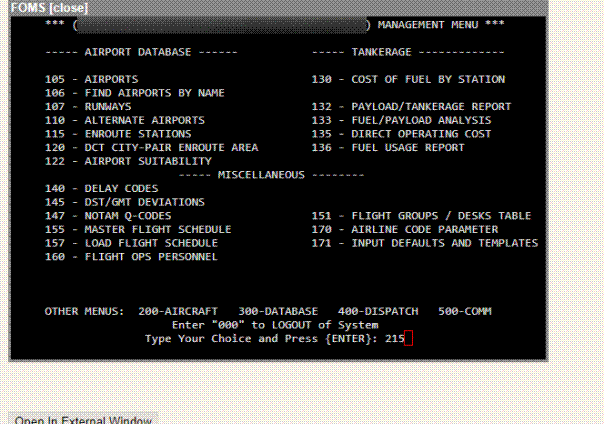

Interaction 1 Enter 215 into the Choice field.

key interaction Press the KeySymbol:13 key.

key interaction Press the KeySymbol:13 key.


ATTENTION

For this example, the information has already been entered for you.

Note: The "Dump Fuel" option is selected in this FOMS menu. Options are Y (yes) or N (no).


key interaction Press the KeySymbol:8 key.

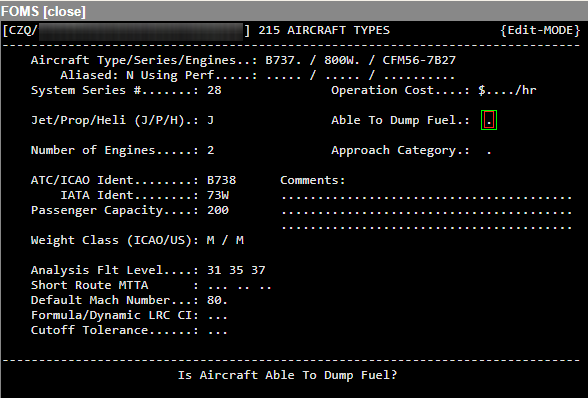

Now, we will change the "Able To Dump Fuel" option from "N" (no) to "Y" (yes).

Interaction 1 Enter Y into the Able To Dump Fuel field.

key interaction Press the KeySymbol:13 key.

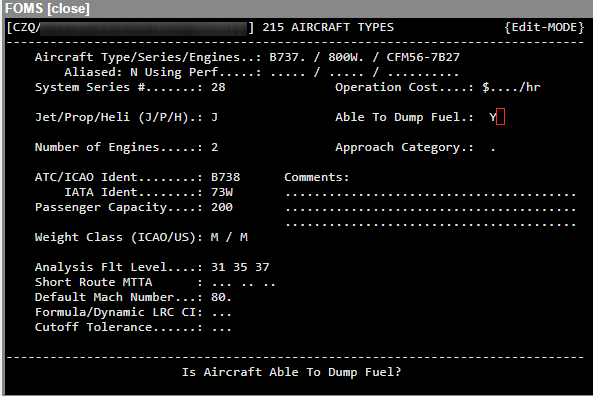

The "Able To Dump Fuel" option is now Y (yes).

key interaction Press the KeySymbol:17+e key.

Press "ENTER" until you are at the end of the record. You can also press and hold CTRL, then press E for the same result.

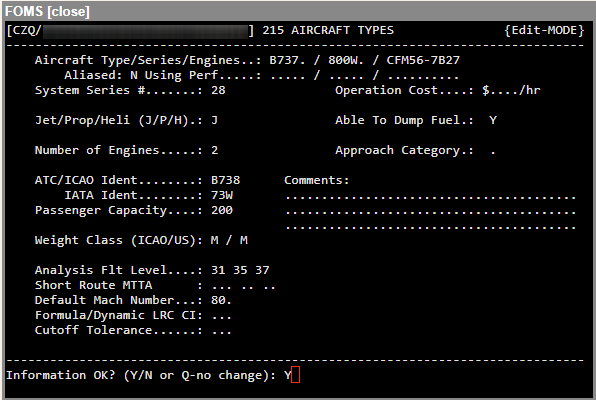

Interaction 2 Enter Y into the Information OK? field.

Note: Enter "Y" to save record, "N" to go back to Edit mode, or "Q" to quit without saving record.

key interaction Please click Next to continue.
