Flight Hazard Forecasting Route Building Functions


Flight Hazard Forecasting Route Building Functions

Description of the functions of DTN Flight Hazard Forecasting, and how the N-FP system integrates with that information.

We estimate that this will take 5 minutes to complete.

Detailed Explanation

Flight Hazard Forecasting Route Functions

The Flight Hazard Forecasting functionality within N-Flight Planning is integrated with our route building options. This allows the system to automatically avoid hazards based on user settings.

 In this module, we review those settings, and demonstrate the automatic avoidance. We demonstrate this using the Storm Hazard, but the functions are the same for all three hazards.

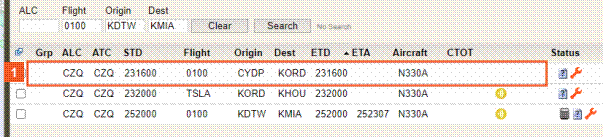

Interaction 1 Click the Route menu item.

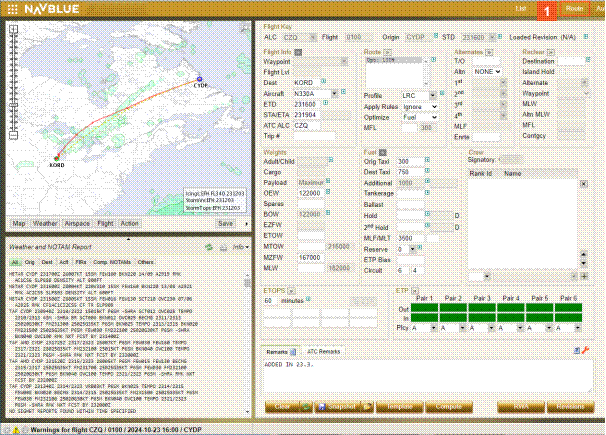

This demo environment is configured to automatically generate an optimum route when no saved routes exist.

In this case, the automatically generated route is not considering any hazards.

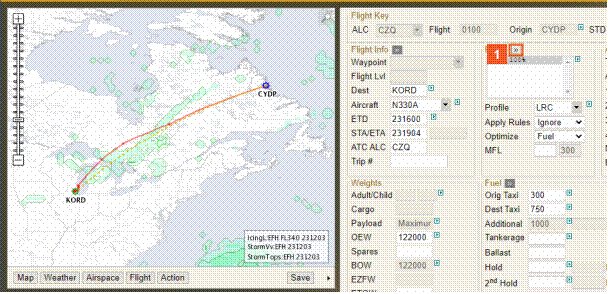

 Reference the route to the left, and note that the optimum route crosses a forecast thunderstorm hazard.

To generate a route that avoids the hazard, we will access the route builder.

Interaction 1 Click the New button.

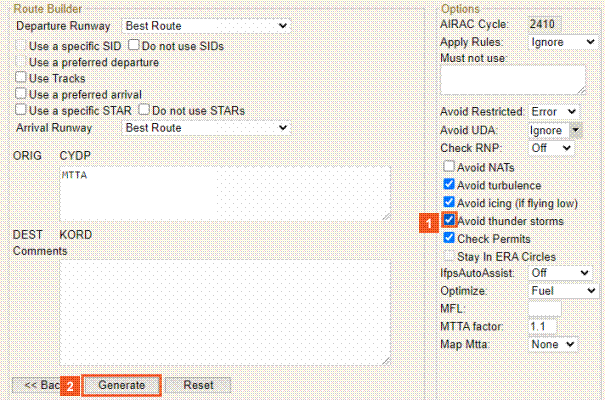

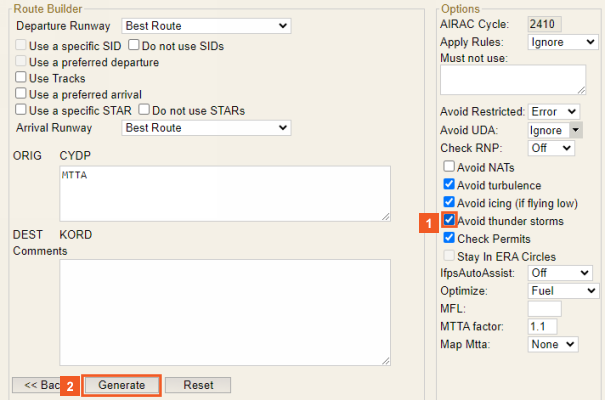

Interaction 1 Click the Avoid thunder storms check box.

Select the
"Avoid thunder storms"
 check box to generate a route avoiding the hazard.

Interaction 1 Click the Generate button.

Interaction 1 Click the Apply button.

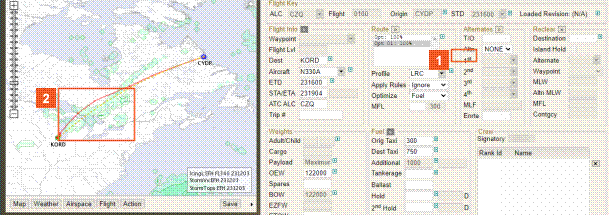

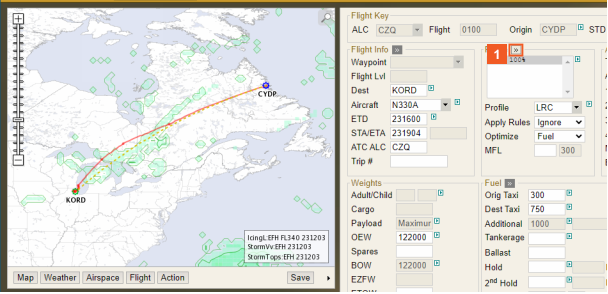

Note: the newly generated route (blue) automatically avoids the storm hazard.

Interaction 1 Right-click: .

Interaction 1 Click the Storm list item.

Interaction 1 Click the Clear button.

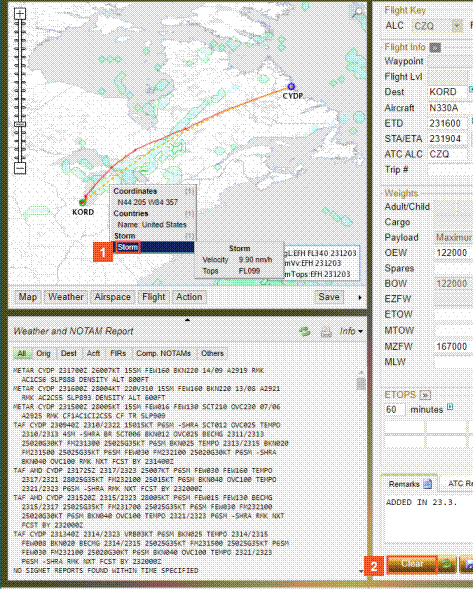

When triggered by a Right Click, the map provides the information for the hazards.

Storm avoidance is based upon Vertical Velocity threshold.

 Clear this flight, and we will review the settings which will allow for automatic hazard avoidance by default.

Interaction 1 Click the Maintenance menu item.

As noted in the Flight Hazard Forecast Configuration module, the settings for default avoidance are located in the Airline Code Parameters.

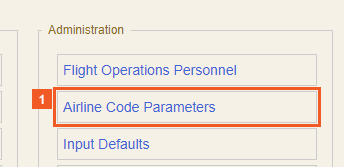

Interaction 1 Click the Airline Code Parameters hyperlink.

Interaction 1 Click the Compute tab.

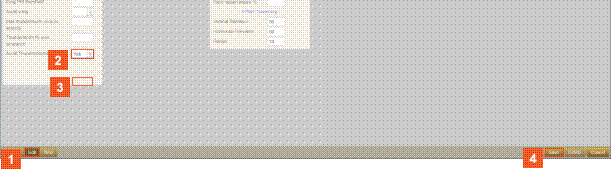

Interaction 1 Click the Edit button.

Interaction 1 Click the Avoid Thunderstorms dropdown button.

This field sets the threshold for storm avoidance. The system will automatically try to avoid any areas of forecast vertical wind velocity higher than this value will.

The Yes/No dropdowns for Avoidance instruct the system whether or not avoidance should be done by default.

Interaction 1 Click the Yes list item.

Interaction 1 Click the Save button.

Interaction 1 Click the TSLA Flight from ORD to HOU list item.

Now that the default has been set, click the ORD-HOU flight, and the optimized route generated by the system will automatically avoid storms.

Interaction 1 Click the Plan menu item.

Interaction 1 Click the Route >> button.

Note that the route displayed is the "OPT" route, signifying it as the automatic optimized route run when no saved routes exist.

As you can see, route automatically avoided the storms by default.

 Expand the Route Group for more information.

Note: the Storm Avoidance is automatically checked.
