ATC & Passengers Tab (Airline Code Parameters)

Modified on: Tue, 28 Nov, 2023 at 2:11 PM

Passengers

Enter Domestic and International weights for Adults, Male, Female, Child, Infant, Cabin and Flight Crew.

Field

Description

Baggage Wgt

Enter Domestic and International baggage weights.

Note: If max payload is selected, you are not able to add passengers.

Note: Passenger weights converted to kgs

Field	Description
Crew Wgt By Assign	Options are Yes, or No. If set to Yes, the checkbox for Based on Assignment is automatically checked. If set to No, you must manually select the checkbox. Default when left blank is the same as No. Note: When enabled, crew members added to the crew list in NFP’s plan screen increase the BOW for the flight automatically based on the passenger weights set in FOMS 170. Removing crew from the list reduces the BOW accordingly.
Overbooking	Options are Yes or No. If set to Yes, NFP allows passenger counts greater than the default value in FOMS 220. If set to No, NFP does not allow passenger counts greater than the default value in FOMS 220. If blank, the same behavior as No occurs.
Check Zero Pax	Options are Yes, No, and Error when Zero. If set to Yes, NFP provides a warning on compute if the passenger count is zero. If set to No, NFP does not provide a warning. If set to Error when Zero, NFP does not allow a successful compute until a passenger count is entered.
Include children's bags	Options are Yes or No. If set to Yes, the system includes the number of children entered in the baggage count.
Include infant's bags	Options are Yes or No. If set to Yes, the system includes the number of infants entered in the baggage count.

ICAO ATC Settings

Default Schedule Type:

Scheduled – TEST flights will always default to S
NonScheduled = Non scheduled
Military
General
Training
Other

The option selected will show in ATC item 8 as shown below......

(FPL-CZQ123-IN

-A319/M-SDE3FGHIJ2M3RXYZWL/HB1

-KMKE1700

-N0432F380 LAR123

-KHDN0229 KEGE KGJT

-PBN/A1C1L1 NAV/RNP10 RNVD1E2A1 REG/N319A

EET/RWF0051 FSD0105 ONL0121 LAR0211

SEL/YTRF TALT/KORD RMK/CALLSIGN NAVBIRD

E/0405 P/TBN C/TBN)

If option Military is selected, the route generator looks at specific military preferred departures and arrivals.

FLT Number Padding: Zero fill flight number options are 2, 3, or 4.

If option 2 is selected, flight numbers such as NAV0010 will display as NAV10 in the ATC message shown below.

(FPL-NAV10-IS

-B744/H-SIGYRXWPZ/A

-CYYZ2000

-N0419F240 DCT YYZ DCT 44N080W 48N085W 51N095W 51N105W/N0399F240

50N115W DCT YVR DCT

-CYVR0518 CYXX

-EET/CZWG0118 CZEG0351 CZVR0423

REG/CATPAC SEL/XXXX PER/M086 RMK/TCAS EQUIPPED)

If option 3 is selected, flight numbers such as NAV0100 will appear as NAV100 in the ATC message shown below.

(FPL-NAV100-IS

-B744/H-SIGYRXWPZ/A

-CYYZ1500

-N0422F240 DCT YYZ DCT 44N080W 48N085W 51N095W/N0398F240 52N105W

51N115W DCT YVR DCT

-CYVR0510 CYXX

-EET/CZWG0113 CZEG0343 CZVR0422

REG/CATPAC SEL/XXXX PER/M086 RMK/TCAS EQUIPPED)

If option 4 is selected, flight numbers such as NAV0100 will appear as NAV0100 in the ATC message as shown below.

(FPL-NAV0100-IS

-B744/H-SIGYRXWPZ/A

-CYYZ1500

-N0422F240 DCT YYZ DCT 44N080W 48N085W 51N095W/N0398F240 52N105W

51N115W DCT YVR DCT

-CYVR0510 CYXX

-EET/CZWG0113 CZEG0343 CZVR0422

REG/CATPAC SEL/XXXX PER/M086 RMK/TCAS EQUIPPED NAV/RNVD1E2A1 RNP4

E/0636 P/TBN R/UVE D/09 450 C YELLOW A/WHITE/BLUE)

If the field is blank, no zero padding will occur.

ATC Item15 Override: Options are Yes or No. If set to Yes, the Designator from FOMS 305 (city pair routes) or FOMS 301 will show as item 15 of the ATC message instead of the entire pref. route. If set to No, item 15 will display the entire pref. route as published.

Note: Please see the link below for more information.

https://n-flightplanning.support.navblue.aero/en/support/solutions/articles/35000132664-route-designator-%E2%80%93-atc-item-15-override

ATC Waypoints (EET): Options are Yes or No. If Yes is entered, all waypoint EETs appear on the ATC message. If No is entered, EETs do not appear in the ATC message.

(FPL-NAV100-IS

-B744/H-SIGYRXWPZ/A

-CYYZ1500

-N0422F240 PEAR9 MALTN DCT YMS DCT DANNY J525 TIBUD DCT BONDE J525YXZ J576 SPRAE DCT BETUM DCT ALSED DCT BOOTH MDOWS1

-CYVR0511 CYXX

-EET/CZWG0112 CZEG0345 CZVR0424

YMS0005 DANNY0018 TIBUD0022 BONDE0045 YXZ0054 TRUDY0120 YHD0148

YDN0237 YQV0253 YEA0342 HUSAR0358 YYC0406 SPRAE0415 BETUM0421

ALSED0434

If the field is blank, the same behavior as No applies.

FIR EET in ICAO: Options are Yes or No. If Yes is entered, all FIR EETs appear in the ATC message. If No is entered, EETs do not appear in the ATC message.

If the field is blank, no FIR waypoint EETs appear in the ATC message.

RIF in Item 18: Display reclear in RIF (Reclearance in flight)/ of Item18. Options are Yes or No.

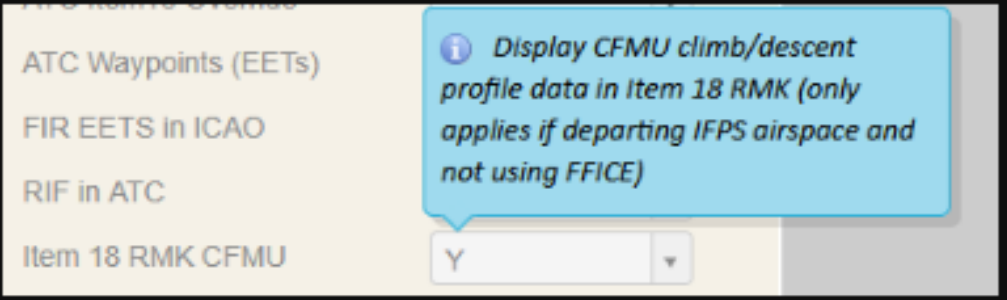

Item 18 RMK CFMU: Show climb/descent profile in CFMU airspace in ATC item 18 RMK. The flight must take place within IFPS airspace – from origin to destination.

TOC = Top of Climb / TOD = Top of Descent / TOW = Takeoff weight / TAXI = Taxi time

BOC BOC= Bottom of Climb / BOD = Bottom of Descent / DAL = Distance at location

Item 19 in ATC: Options are Yes or No. If Yes is entered, additional information such as endurance, radios, dingy colors/number, and aircraft colors are displayed in the ATC message as shown below. If No is selected, this information does not display in the ATC message.

If the field is blank, the same behavior as No occurs.

Use IFPS Format: Options are Yes or No. If Yes is entered, the ATC message displays only the first FIR estimated enroute time (EET) and last FIR EET when the route passes through IFPS airspace. If No is selected, EETs for ALL FIRS are displayed.

If the field is blank, the same behavior as No occurs.

Note: The settings you enter here are applied to all aircraft unless these fields are set in the Aircraft Database (FOMS 220) menu for a particular aircraft. Values set in the Aircraft Database (FOMS 220) override the values set here.

ATC Remark: Any information entered here will appear in ICAO item 18 as a RMK/ item for all flights.

SEL/YTRF TALT/KORD RMK/CALLSIGN NAVBIRD

E/0405 P/TBN C/TBN)

Comments entered here will have no impact on NFP or the flight plan. These comments are for database and internal use only.

Second Alternate in ATC: Options are Yes or No. If set to Yes, the ICAO ATC includes the 1st alternate and the 2nd alternate (see below). If set to No, only the first alternate appears.

When set to Yes:

When set to No:
