1 Introduction
Notifications WebFOMS Screens
This topic is an overview of the Notifications WebFOMS screens.
We estimate that this will take 3 minutes to complete.
2 Detailed Explanation
Notification WebFOMS Screens

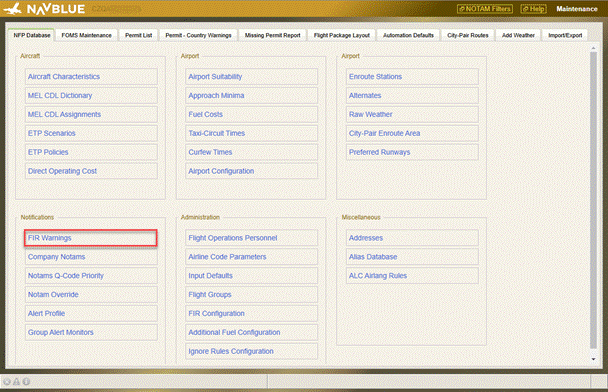

This topic provides you with an overview of the webFOMS screens that are in the Notifications group on the NFP database tab on the Maintenance screen.
ATTENTION
Before you begin
this topic, you should familiarize yourself with webFOMS
functionality.

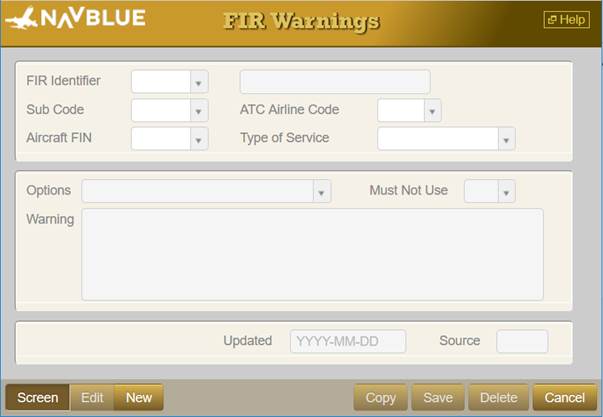

FIR Warnings
Use this program to display a predefined warning message when the route of flight of an active flight plan enters an FIR found within the database.
Dispatch Warning Only - the text of the warning
message entered is displayed as a Compute warning on the status
bar, see Status Bar for more information.
Flight Plan Warning Only - the text of the warning
message entered is included in the Flight Plan.

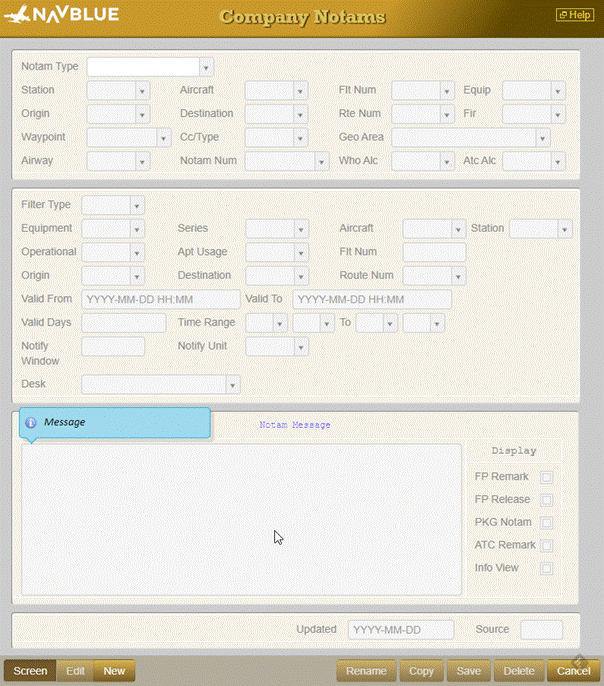

Company Notams
Use this program to add, edit, delete or view company NOTAMs.

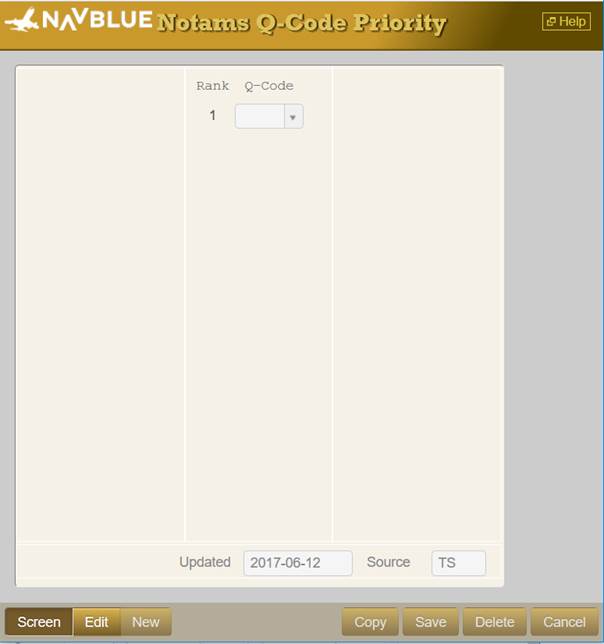

Notams Q-Code Priority
This program stores
the international Q-codes for NOTAMs (see NOTAM Q-codes in the
Glossary) and their full plain language translations and plain
language abbreviations. Q-codes are made up of four alphanumeric
characters: the first two characters translate into one type of
expression, generally describing a particular category of
problems, while the second two characters elaborate or refine
the description of the problem.
The NOTAM
parsing program reads NOTAMs as they are received. If it finds a
Q-code, then it interrogates this data file to determine what
the appropriate plain language translation should be. This
translation is included as part of the NOTAM record that is
written to disk, and from that point on any time such a NOTAM is
reported (either to screen, hardcopy, or as part of the Send
Flight Papers packages), the plain language translation will
also appear, enclosed by forward slash characters (/).
A typical example would appear like this:
KETAL: OPERATIONAL: NOTAMS
- A0017/93 16JAN93/1200-16JAN/93/2200
E) RAY 9R/27L TENREC)
/.TENREC: RUNWAY CLOSED./

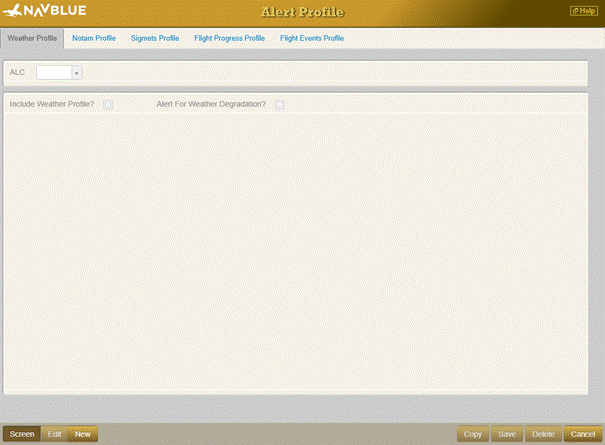

Alert Profile
Use this program to add, edit, delete, or view alert profiles used by the alerting function in N-FP.

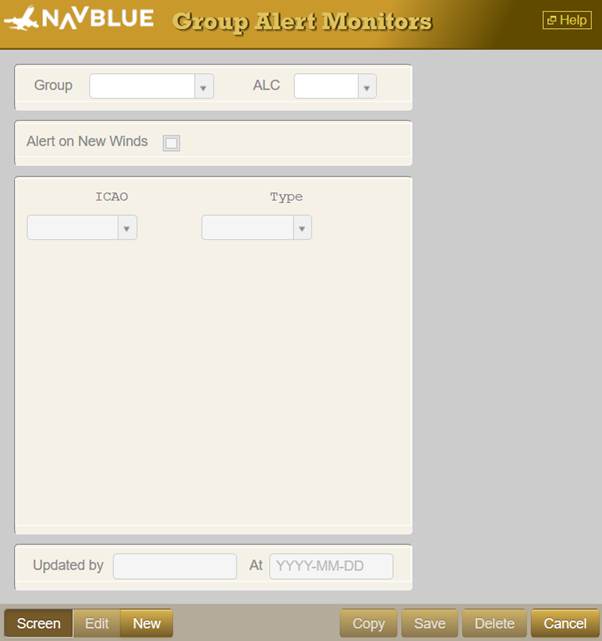

Group Alert Monitors
Use this program to add stations to the Weather Alert Monitor list. This allows you to monitor added stations, even if they are not associated with a flight.
